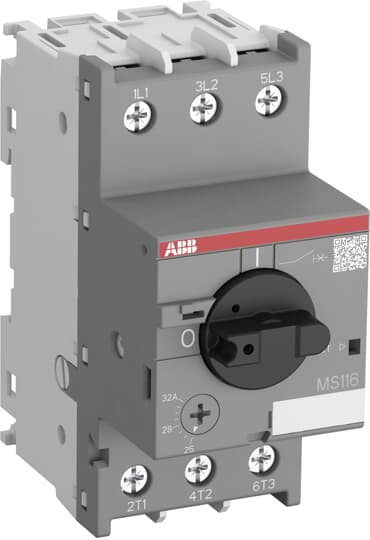

MS116-20 Manual Motor Starter (16-20A)
MS116 manual motor starter
* Part number: MS116-20
* MS116 is a compact and economic range for motor protection up to 15.5 kW (400 V) / 32 A in width of 45 mm. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, three-phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory.
* Part number: MS116-20
* MS116 is a compact and economic range for motor protection up to 15.5 kW (400 V) / 32 A in width of 45 mm. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, three-phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory.
Product identifiers
SKU: 1SAM250000R1013
Specifications
| Depth | 85.4 |
| Width | 45 |
| Height | 97.8 |
| Power loss | 6.9 |
| Number of poles | 3 |
| Device construction | Complete device in housing |
| Switch off technique | Thermomagnetic |
| Phase failure sensitive | yes |
