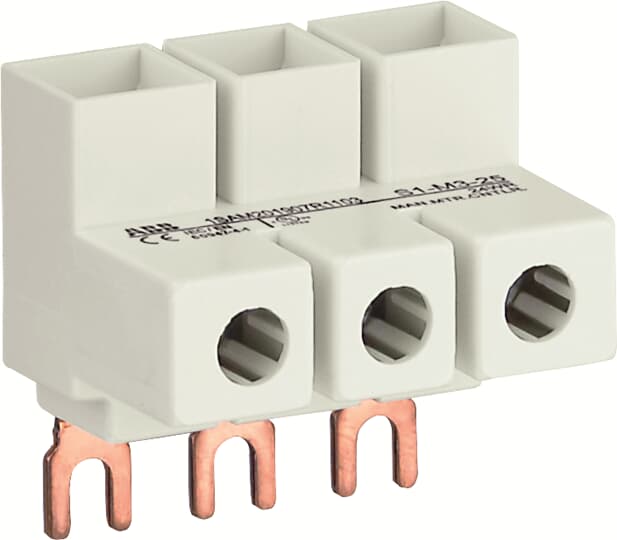

S1-M3-25 3-phase power infeed block
Manual motor starters main accessories - Three-phase feeder terminals
* Part number: S1-M3-25
* Three-phase busbars ensure a quick and safe connection and are therefore a cost effective solution. A variety of different three-phase busbars up to 100 A are in the assortment. Between 2 and 5 manual motor starters with none, one or two lateral auxiliary contacts can be connected. Different three-phase feeder terminals are available according to the application.
* Part number: S1-M3-25
* Three-phase busbars ensure a quick and safe connection and are therefore a cost effective solution. A variety of different three-phase busbars up to 100 A are in the assortment. Between 2 and 5 manual motor starters with none, one or two lateral auxiliary contacts can be connected. Different three-phase feeder terminals are available according to the application.
Product identifiers
SKU: 1SAM201907R1103
Specifications
| Depth | 32 |
| Width | 43.8 |
| Height | 43.95 |
| Contact safe | yes |
| Connection type | Screwing |
| Mounting method | Screw |
| Nominal current | 65 |
| Number of poles | 3 |
