Cascadable	no
Voltage type	DC
Width sensor	32.3
Response time	11
Height of sensor	6.4
Length of sensor	36.9
With beam coding	no
Fade-out possible	no
Override possible	no
Reduced resolution	no
Ambient temperature
Safety field height	150
With muting function	no
With restart blockage	yes
Clock control possible	no
Wavelength of the sensor	950
Degree of protection (IP)	IP65
Degree of protection (NEMA)	-
Type of electric connection	Connector M12
Operation agent-safety class	Safety class 3
Suitable for safety functions	yes
Rated control supply voltage DC
Resolution of the light curtain	14
Explosion safety category for gas	None
Explosion safety category for dust	None
Detection capability for test bodies	14
Type of switching output of the OSSD	PNP
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Transmission range of the safety field	6
Max. output current at protected output	500
Scope of delivery of the one-way system	Transmitter and receiver
Type of safety according to IEC 61496-1	4
Number of protected semiconductor outputs	2
Switching voltage of OSSD at state "high"	24
Type of interface for safety communication	Other
Number of protected contact energized outputs	0
With monitoring function downstream switching devices	yes
Number of semiconductor outputs with signalling function	0
Number of contact energized outputs with signalling function	0

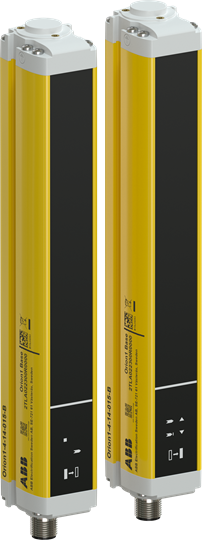

Orion1-4-14-015-B Transmitter+ Receiver
