VEM4 Mechanical and Electrical Interlock
AF09...AF96 Accessories - Mechanical and electrical interlock set
* Part number: VEM4

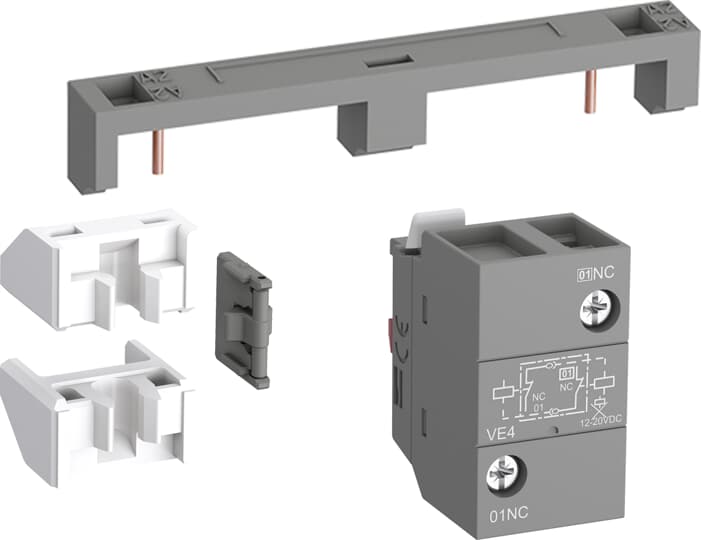

* VEM4 includes a VM4 mechanical interlock unit with 2 fixing clips (BB4), a VE4 electrical interlock block. VE4 block must be used with A2-A2 connection to respect the electrical connection diagram.
* VEM4 not suitable for AF..Z contactors with DC control voltage 12...20 V DC.
* Part number: VEM4
* VEM4 includes a VM4 mechanical interlock unit with 2 fixing clips (BB4), a VE4 electrical interlock block. VE4 block must be used with A2-A2 connection to respect the electrical connection diagram.
* VEM4 not suitable for AF..Z contactors with DC control voltage 12...20 V DC.
Product identifiers
SKU: 1SBN030111R1000
Specifications
| Auxiliary contacts, extendable | no |
| Number of contacts as normally open contact | 0 |
| Number of contacts as normally closed contact | 2 |
Documents
Deeplink product page
Deeplink REACH
2CMT2021-006202 - signed.pdf
Dimensioned drawing
2CDC001079B0201_Rev B_MSS 2D and 3D files for CAD systems.pdf
Instructions for use
1SBC101028M6801.pdf
Product data sheet
Declaration RoHS
2CMT2021-006277_Contactors_revC.pdf
Declaration DOC CE (Declaration of conformity CE)
1SBD250007U1000.pdf
