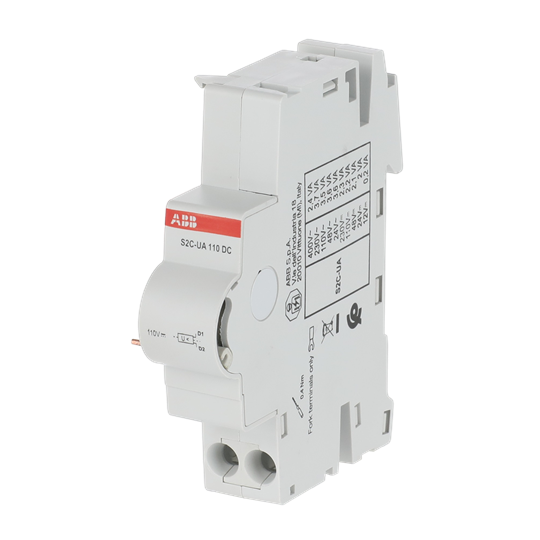

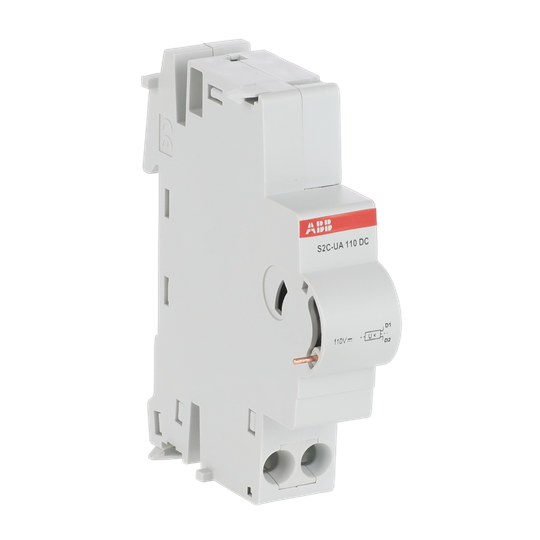

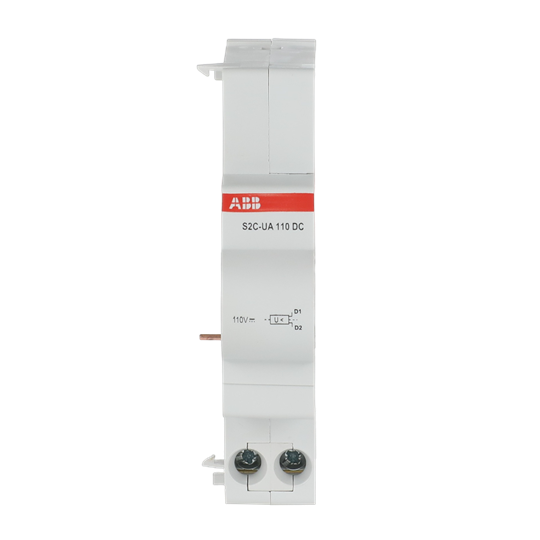

S2C-UA110DC COMPACT U/V TRIP 110VDC
Undervoltage releases
* Part number: S2C-UA 110 DC
* Function: protection of the load in the event of a voltage drop (between 70% and 35% of its rated value); positive safety (device's tripping when the voltage is disconnected) emergency stop by means of a button. Suitable for MCBs S 200 series, RCCBs F200 series and RCBOs DS201, DS202C, DS 200 series, SD 200 switch disconnectors series. It can be used with MCBs SN201 series by means of SN201-IH interface module.
* Part number: S2C-UA 110 DC
* Function: protection of the load in the event of a voltage drop (between 70% and 35% of its rated value); positive safety (device's tripping when the voltage is disconnected) emergency stop by means of a button. Suitable for MCBs S 200 series, RCCBs F200 series and RCBOs DS201, DS202C, DS 200 series, SD 200 switch disconnectors series. It can be used with MCBs SN201 series by means of SN201-IH interface module.
Product identifiers
SKU: 2CSS200911R0009
Specifications
| Function | Under voltage coil |
| Voltage type | - |
| Rated voltage | 110 |
| Device fitting | Miniature circuit breaker (MCB) |
| Rated switch current | - |
| Number of fault-signal switches | 1 |
| Width in number of modular spacings | - |
| Number of contacts as change-over contact | - |
