| Depth |
46.7 |
| Width |
96.2 |
| Height |
57.5 |
| Function |

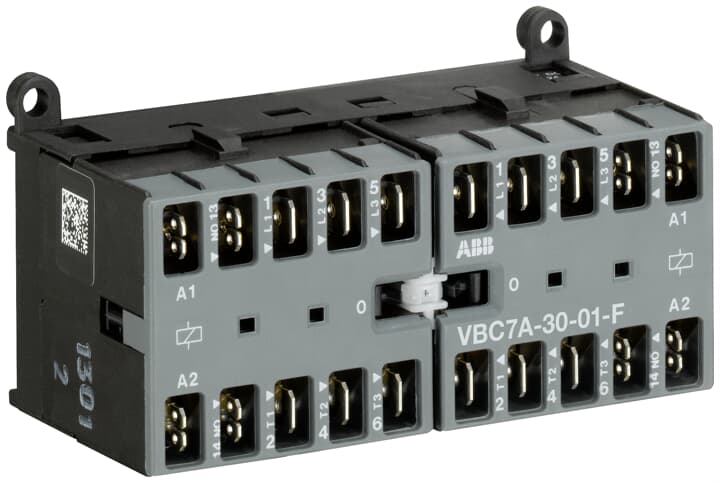

Reversing contactor |
| Operating voltage DC |
|
| Degree of protection (IP) |
IP20 |
| Operating voltage AC 50 Hz |
|
| Operating voltage AC 60 Hz |
|
| Rated operation power NEMA |
2.2371 |
| Suitable for rail mounting |
yes |
| Voltage type for actuating |
DC |
| Degree of protection (NEMA) |
1 |
| Rated control supply voltage DC |
|
| Voltage type (operating voltage) |
- |
| Rated operation power at AC-3, 400 V |
5.5 |
| Rated control supply voltage AC 50 Hz |
|
| Rated control supply voltage AC 60 Hz |
|
| Rated operation current Ie at AC-1, 400 V |
6 |
| Rated operation current Ie at AC-3, 400 V |
12 |
| Type of electrical connection of main circuit |
Flat plug-in connection |
| Number of normally open contacts as main contact |
3 |
| Number of normally closed contacts as main contact |
0 |
| Number of auxiliary contacts as change-over contact |
- |
| Number of auxiliary contacts as normally open contact |
0 |
| Number of auxiliary contacts as normally closed contact |
1 |
| Type of electrical connection for auxiliary- and control current circuit |
Other |
