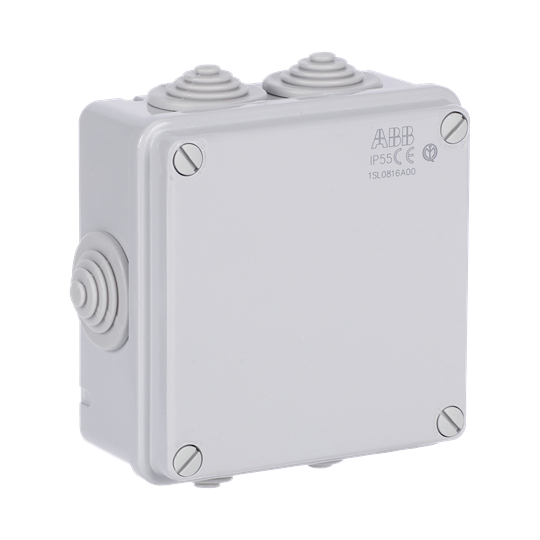

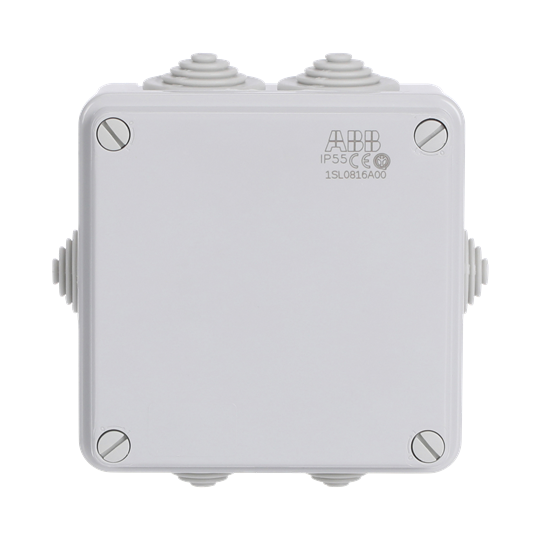

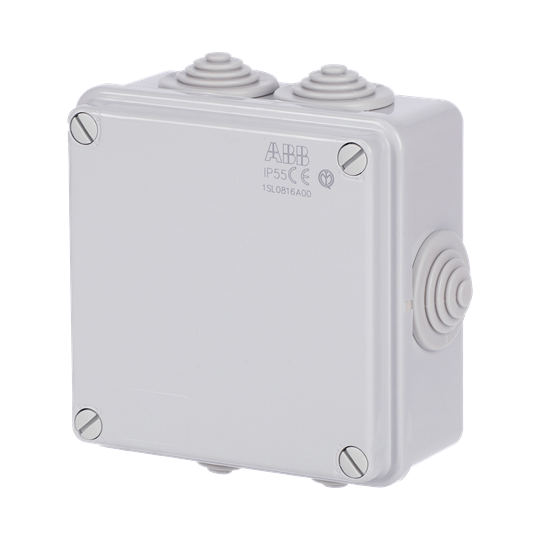

IP55-CABLE GL-LOW LID-100X100X50-1/4TS
Junction Boxes - IP55 Thermoplastic box
* Protection degree: IP 55 for screw-on lid boxes
* Available in RAL 7035 grey
* Boxes with opaque screw-on lids in thermoplastic material, self-extinguishing in compliance with UL 94 V-O Standard and resistant to abnormal heat and fire up to 960 ?C (glow wire test) in compliance with IEC 695-2-1 Standard
* Operating temperature from -25 ?C to +75 ?C, IP 55 junction boxes in thermoplastic material obtained the IMQ mark of approval IMQ mark
* Shock resistance 6 Joules
* High resistance to heat and chemical and atmospheric agents
* Wide range with press on lids, lids with stainless steel screws and lids with rapid-pitch, safety screws in thermoplastic insulating material
* Boxes with protection degree IP 55 are composed of a patented lid produced in a single pressing phase together with its seal
* All the boxes with cable-way inlets are suitable to be installed with mini-trunkings by using special connectors ABB
* When fitted with special housings, the base of the box can be equipped with terminals and various accessories
* Boxes measuring 160x135, 220x170 and 310x240 mm can be mounted on the wall with brackets code 12 858
* Junction boxes made in compliance with CEI 23-48 and IEC60 670 Standards
* Protection degree: IP 55 for screw-on lid boxes
* Available in RAL 7035 grey
* Boxes with opaque screw-on lids in thermoplastic material, self-extinguishing in compliance with UL 94 V-O Standard and resistant to abnormal heat and fire up to 960 ?C (glow wire test) in compliance with IEC 695-2-1 Standard
* Operating temperature from -25 ?C to +75 ?C, IP 55 junction boxes in thermoplastic material obtained the IMQ mark of approval IMQ mark
* Shock resistance 6 Joules
* High resistance to heat and chemical and atmospheric agents
* Wide range with press on lids, lids with stainless steel screws and lids with rapid-pitch, safety screws in thermoplastic insulating material
* Boxes with protection degree IP 55 are composed of a patented lid produced in a single pressing phase together with its seal
* All the boxes with cable-way inlets are suitable to be installed with mini-trunkings by using special connectors ABB
* When fitted with special housings, the base of the box can be equipped with terminals and various accessories
* Boxes measuring 160x135, 220x170 and 310x240 mm can be mounted on the wall with brackets code 12 858
* Junction boxes made in compliance with CEI 23-48 and IEC60 670 Standards
Product identifiers
SKU: 1SL0816A00
Specifications
| Depth | 50 |
| Model | Junction box |
| Shape | Rectangular |
| Width | 100 |
| Colour | Grey |
| Length | 100 |
| Castable | no |
| Diameter | 25 |
